Power take-off (PTO) driven hydraulic dump systems are among the most mechanically complex systems on commercial trucks, combining the truck's drivetrain with a hydraulic power unit and a dump body or trailer. When these systems fail, productivity stops immediately — a dump truck that cannot dump is an expensive paperweight. Understanding how PTO and hydraulic dump systems work, recognizing failure symptoms, and knowing when to call for professional repair can minimize downtime and prevent costly secondary damage.
How PTO and Hydraulic Dump Systems Work
A power take-off is a geared device that mounts to the truck's transmission and draws mechanical power from the drivetrain to operate auxiliary equipment. In a dump application, the PTO drives a hydraulic pump that pressurizes hydraulic fluid. This pressurized fluid flows through a control valve and into the hydraulic dump cylinder, which extends to raise the dump body or trailer bed.
The PTO gear ratio determines how fast the hydraulic pump turns relative to the engine speed. Most dump applications use a PTO gear ratio that drives the pump at optimal speed when the engine is at 1,200 to 1,500 RPM. Operating the PTO at too high an RPM can damage the pump and generate excessive heat in the hydraulic system.
The complete hydraulic circuit includes the PTO unit, hydraulic pump, hydraulic reservoir (tank), suction filter, pressure filter, control valve, relief valve, hydraulic dump cylinder or cylinders, and the hoses and fittings connecting these components. A failure at any point in this circuit can disable the dump function.
PTO Engagement and Disengagement Issues
The most common PTO problem is failure to engage or disengage properly. PTO engagement is controlled either by an air-operated shift mechanism or an electrical solenoid, depending on the PTO model. When the driver activates the PTO switch in the cab, the shift mechanism moves the PTO gear into mesh with the transmission's PTO drive gear.
If the PTO fails to engage, common causes include low air pressure in the air shift system — verify that system air pressure is at full operating level before troubleshooting the PTO. The shift mechanism may be worn or seized from lack of lubrication. The PTO gear teeth may be damaged, preventing clean engagement. In electric-over-air models, the solenoid may have failed, or the wiring to the solenoid may be damaged.
If the PTO engages but will not disengage, the shift mechanism may be stuck in the engaged position due to mechanical binding. This is a serious safety concern because the hydraulic pump continues to run whenever the transmission is in gear, and the dump body may raise unexpectedly. If the PTO will not disengage, shut off the engine immediately and call for service.
Hydraulic Pump Failures
The hydraulic pump is the heart of the dump system. Gear pumps are the most common type in dump applications due to their simplicity and durability. However, gear pumps wear over time, and their internal clearances increase, reducing pumping efficiency and maximum pressure capability.
Signs of a failing hydraulic pump include noticeably slower dump body raise speed — if the body that used to raise in 15 seconds now takes 25 seconds, the pump is losing capacity. Unusual noise from the pump area — whining, grinding, or cavitation sounds — indicates internal damage or fluid starvation. Excessive heat in the hydraulic fluid after normal operation suggests the pump is working harder than it should due to internal bypass.
Complete pump failure results in no dump body movement at all. Before condemning the pump, verify that the PTO is actually engaged and driving the pump shaft, that the hydraulic reservoir has adequate fluid, and that the suction line to the pump is not restricted or collapsed.
Control Valve and Relief Valve Problems
The control valve directs hydraulic flow to raise, hold, or lower the dump body. In the neutral position, flow returns to the reservoir without pressurizing the cylinder. In the raise position, flow is directed to the cylinder to extend it. In the lower or float position, the cylinder is allowed to retract under the weight of the dump body.
A control valve that sticks in any position creates operational problems. A valve stuck in raise will continue pressurizing the cylinder even when the operator moves the control to neutral. A valve stuck in float or neutral will not allow the body to raise. Control valve problems are often caused by contaminated hydraulic fluid — dirt particles prevent the valve spool from moving freely within the valve body.
The relief valve is a critical safety component that limits maximum system pressure. When the dump cylinder reaches full extension or encounters an obstruction, the relief valve opens to prevent pressure from exceeding the system's rated capacity. A relief valve set too low will prevent the body from lifting a full load. A relief valve set too high or stuck closed can burst hoses, damage the pump, or cause cylinder failure.
Relief valve testing requires a hydraulic pressure gauge installed in the system. The valve should open within 10 percent of its rated setting. If the relief valve is not holding correct pressure, it should be replaced — adjusting a worn relief valve is a temporary fix at best.
Hydraulic Dump Cylinder Repair

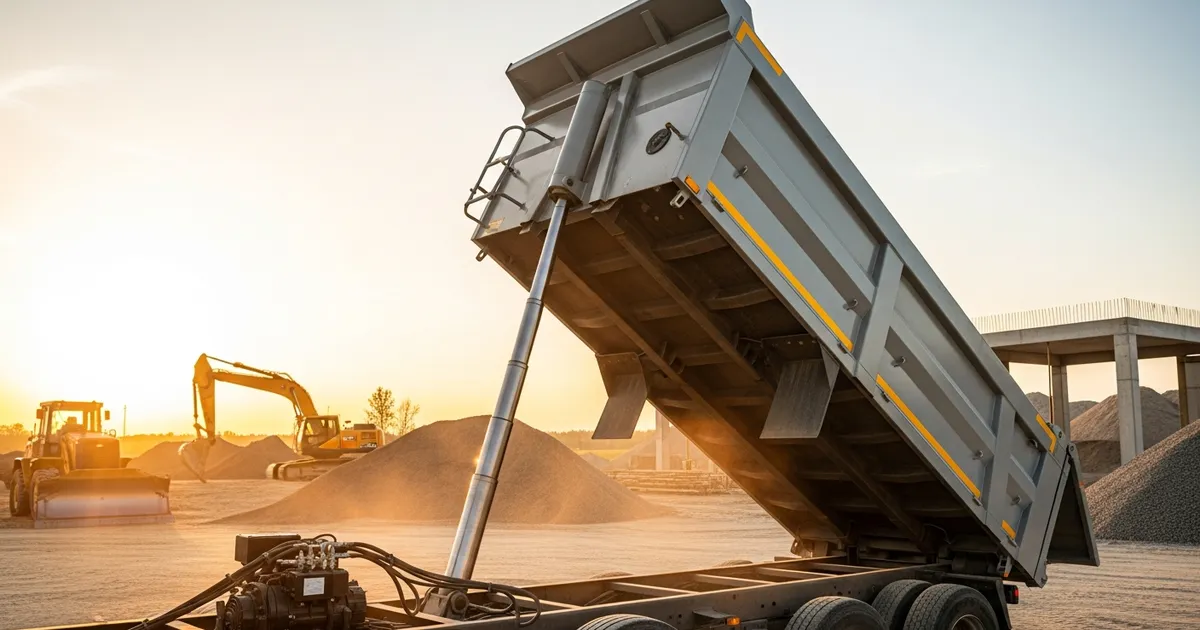

The hydraulic dump cylinder converts fluid pressure into mechanical force to raise the dump body. Single-acting telescoping cylinders are the most common type in dump applications. These cylinders extend under hydraulic pressure and retract under gravity when the control valve is moved to the lower position.
Common cylinder problems include external seal leaks at the piston rod where it exits the cylinder body, internal bypass where fluid leaks past the piston seals allowing the body to slowly drift down, and bent or scored piston rods that damage seals and prevent proper sealing.
A dump body that raises but slowly drifts down when the control is in the hold position has internal cylinder bypass. The piston seals are worn or damaged, allowing pressurized fluid to leak past the piston from the pressure side to the return side. Cylinder rebuild or replacement is required — this is not a problem that improves on its own.
Hydraulic Reservoir and Fluid Management
The hydraulic reservoir serves multiple functions: it stores fluid reserve, allows air bubbles to separate from the fluid, and helps dissipate heat. An undersized or poorly maintained reservoir contributes to overheating, aeration, and premature component wear.
Check the reservoir fluid level before every use. The level should be at the full mark with the dump body fully lowered. Operating with low fluid can cause the pump to cavitate — drawing air into the system — which creates noise, reduces performance, and damages pump components. Inspect the reservoir breather cap to ensure it is clean and functional. A blocked breather cap creates vacuum in the reservoir, which can collapse the suction hose and starve the pump.
Change hydraulic fluid at the manufacturer's recommended interval or more frequently in dusty desert environments. Contaminated fluid is the number one cause of hydraulic component failures. Replace all filters — suction and pressure — at every fluid change.
